Main features

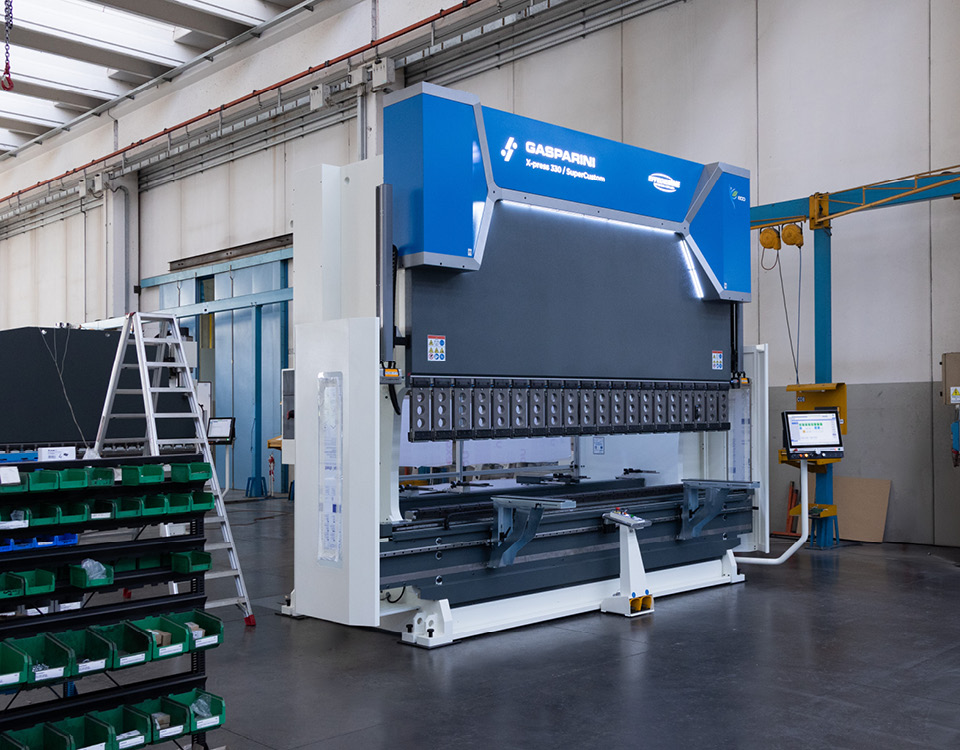

This 330/4000 is equipped with the Gasparini Adaptive Crowning System and the E-Reflex Deformation Compensation System. The combination of these two systems allows excellent results in terms of quality, precision and repeatability of the parts to be bent. Thanks to the cambering, in fact, the two beams are perfectly parallel and it is possible to obtain total control of the angle.
LaserVisor angle control system
It is an automatic laser measuring device without physical contact with the sheet metal. It allows the desired angle to be obtained immediately without corrections.
LaserVisor angle control system
It is an automatic laser measuring device without physical contact with the sheet metal. It allows the desired angle to be obtained immediately without corrections.
Clamping system
The upper clamping system is of the pneumatic type with front and rear locking for 400 mm high tool adapters.
The lower clamping system is of the pneumatic Gasparini type.
Clamping system
The upper clamping system is of the pneumatic type with front and rear locking for 400 mm high tool adapters.
The lower clamping system is of the pneumatic Gasparini type.
Clamping system
The upper clamping system is of the pneumatic type with front and rear locking for 400 mm high tool adapters.
The lower clamping system is of the pneumatic Gasparini type.
Clamping system
The upper clamping system is of the pneumatic type with front and rear locking for 400 mm high tool adapters.
The lower clamping system is of the pneumatic Gasparini type.
CNC & offline software
The customer chose to equip the press brake with the Delem DA-69S CNC:
- 24″ high resolution touch screen (16:9)
- DXF import
- STEP and IGES import (via offline)
- 3D visualisation
- 3D and 2D programming
- 3D visualisation of an offline programme
- Offline software included: 3D Profile-S
- Industry 4.0 package
Backgauge
The backgauge is 5-axis (X-R-Z1-Z2-X6) CNC-controlled, and has been implemented with an additional stop and reference, to ensure maximum precision for operators during the bending process of specific parts.
Other systems and accessories
In addition, this X-press 330/4000 has been implemented with:
- 2 sliding front supports for LaserVisor
- Surcharge for just parking both front supports on the left
- ECO energy-saving package
- Automatic positioning of DSP-AP safety photocells for intermediates from 200 mm to 400 mm height inclusive
- 1 wireless sliding footpedal
- 1 additional footpedal (with cable)
- Provision for Tele-Link remote assistance
- LED lighting of working area
